Part 2: Five Things You Need To Know About Adding Braille to Custom ADA Signage

Overwhelmed by all the Braille requirements? Don’t be. Follow these 5 tips to make sure your custom signs pass inspections with a breeze.

1. First, find out if your signs require Braille.

You may be surprised to learn that not all ADA signs require Braille. According to ADA StandardsBraille is only required on signs that identify a room, space or area—whether it’s accessible by the public or if it’s just for employees.

Required

  • restrooms
  • meeting and conference room signs
  • utility room signs
  • classroom signs
  • common room signs

NOT required

  • directional signs
  • elevator signs
  • check-in signs
  • informational signs
  • open hours
  • security signs
  • staff only signs
  • exit signs
  • refuge signs
  • stair signs
  • floor signs

2. If your sign requires Braille, make sure the text is raised, too.

Raised text has it’s purpose, as less than 10% of the 1.3 million people who are legally blind in the US actually know how to read Braille. A sign with Braille makes it a tactile sign with the purpose of serving the visually impaired—which means the text needs to be raised as well.

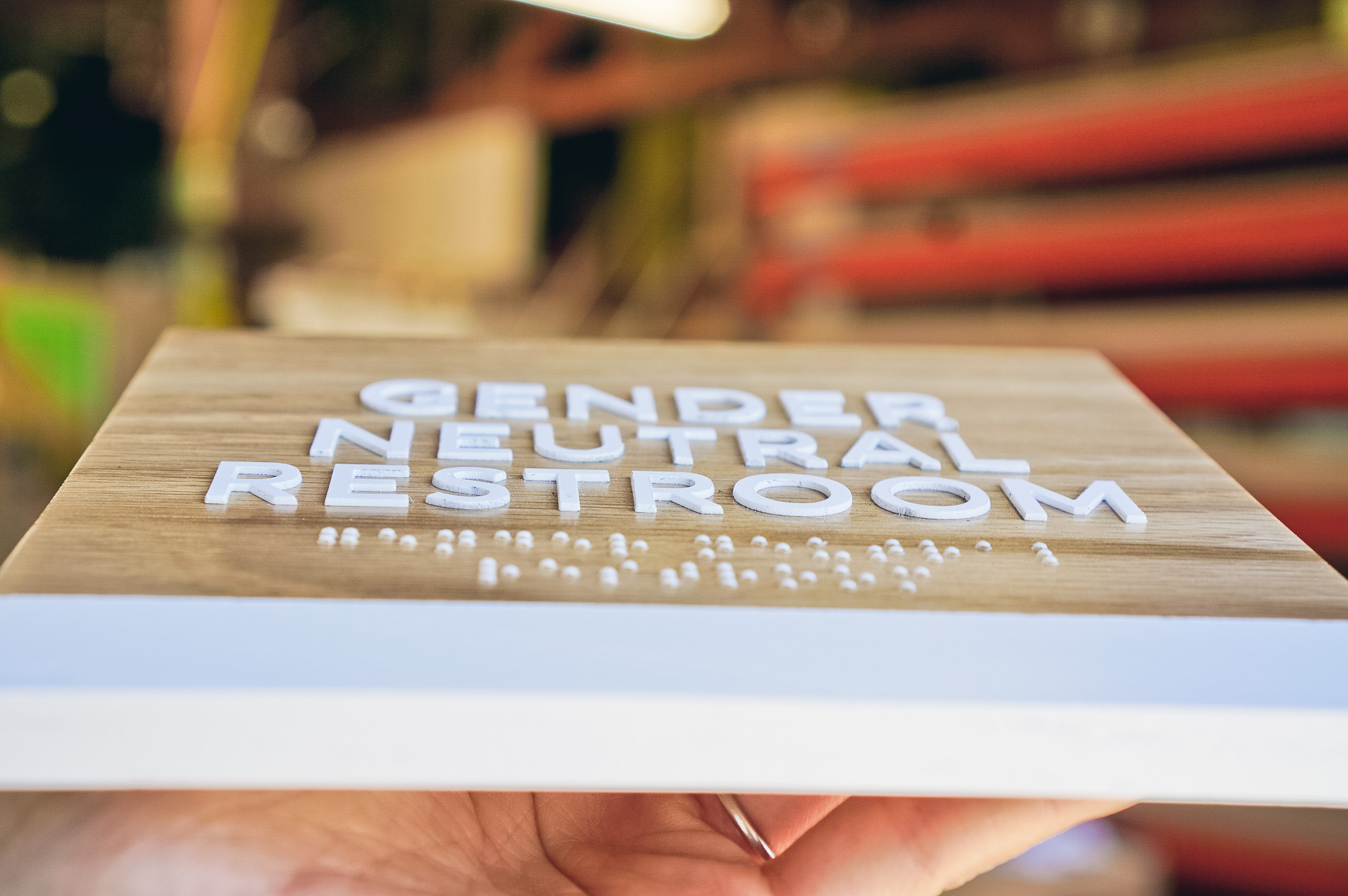

slack custom ada light wood restroom sign with braille

You can skip the raised text for signs that don’t require Braille, such as the ones mentioned in Step #1.

3. Use the right version of Braille.

There’s not one, not two, but three levels of complexity in English Braille. ADA standards require Grade 2 Braille, which was introduced as a space-saving alternative to Grade 1 Braille. Grade 2 Braille abandons one-to-one transcription and adds hundreds of abbreviations and contractions, making it easier to fit on signage.

Grade 1 vs Grade 2 Braille for ADA Signage

Here are all the contractions used in Grade 2 Braille.

Grade 2 Braille Contractions

Here’s an example of how the contractions work.

Example of how Braille 2 contractions work

4. Keep Braille transcriptions together.

To make things easier for the visually impaired, it’s required that all Braille is grouped together in one section, and always located at the bottom of the sign.

ADA Braille Grouping

5. Choose the right sign vendor.

ADA standards specify dimensional requirements in order to ensure that the Braille is easy and comfortable to read (no sharp edges, please). Therefore, it’s important to choose a sign vendor with experience in ADA signage to ensure that the correct processes and materials are used.

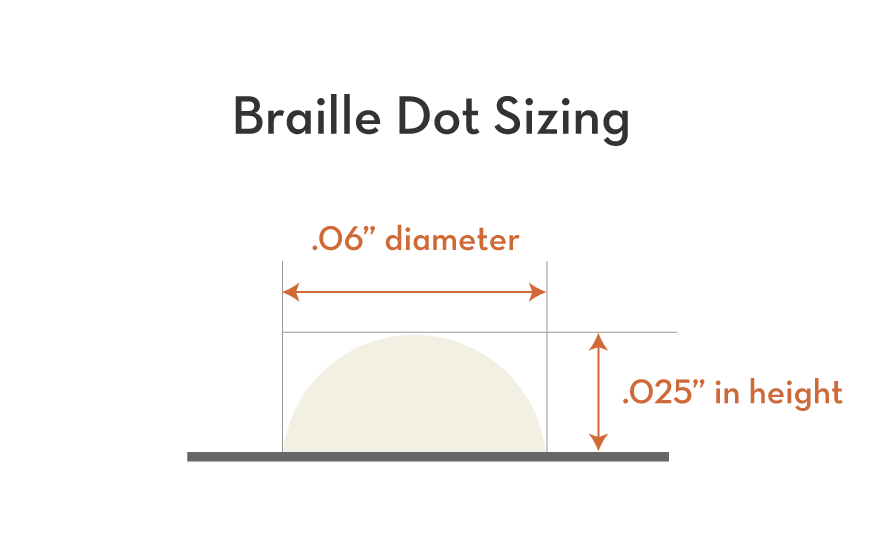

Braille Dot Sizing
Braille dot profiles
(We use domed dots)

The Lazy Designer’s Guide to ADA Signage

We read 279 pages of the ADA Standards for Accessible Design so you don’t have to. If you found this article helpful, check out the other articles in this guide.
